| 性能参数Performance parameter | 产品型号Type | ||||
| KWR75S-100 | KWR75S-200 | KWR75S-300 | KWR75SP | ||
| 量程Fz | 100 | 200 | 300 | 400 | |

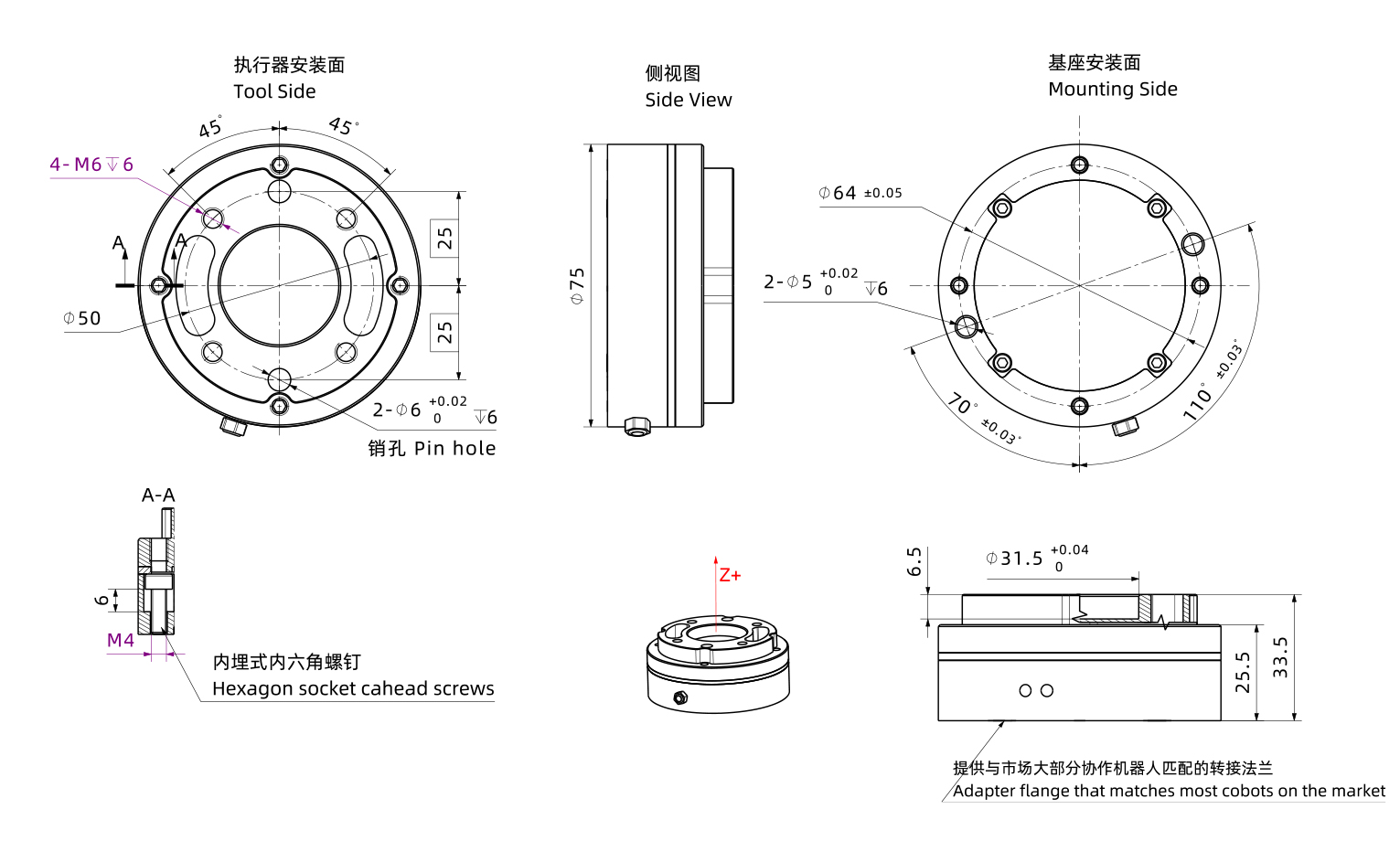

| 直径Diameter | mm | 75 | 75 | 75 | 75 |
| 高度Height | mm | 33.5 | 33.5 | 33.5 | 33.5 |
| 材质Material | 铝合金Aluminum alloy | 铝合金Aluminum alloy | 铝合金Aluminum alloy | 铝合金Aluminum alloy | |
| 表面处理Surface treatment | 阳极化Anodizing | 阳极化Anodizing | 阳极化Anodizing | 阳极化Anodizing | |
| 过载水平Over load | % | 300 | 300 | 300 | 300 |
| 分辨率Resolution | %FS | 0.05 | 0.05 | 0.05 | 0.05 |
| 重复精度Precision | %FS | 0.1 | 0.1 | 0.1 | 0.1 |
| 重量Weight | kg | 0.26 | 0.26 | 0.26 | 0.26 |
| 防护等级Protection level | IP65 | IP65 | IP65 | IP65 | |
| 工作温度Operating temperature | ℃ | -10~80 | -10~80 | -10~80 | -10~80 |
| 采样频率Sampling frequency | Hz | 1000 | 1000 | 1000 | 1000 |
| 供电电压Supply voltage | VDC | 12~48 | 12~48 | 12~48 | 12~48 |
| 通信接口Communication protocol | 422/485/MODBUS/TCP/UDP/EtherCAT/USB | ||||
| *部分参数为配套信号采集模块参数。 *准度包含了串扰、滞后、非线性等因素导致的测量误差。 Note: It needs to be used with high-precision data acquisition system outside. | |||||
